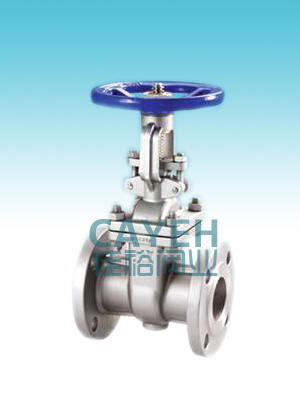

CYZ41 CAST STEEL GATE VALVE 150LB/JIS 10K 300LB/JIS 20K

Item No.： CYZ41

Product Details：

Applicable standards:
STEEL GATE VALVES,API600/API6D
STEEL GATE VALVES,ISO10434/ISO14313
STEEL GATE VALVES,ASMEB16.34
FACE TO FACE,ASMEB16.10
END FLANGES,ASMEB16.5
BUTTWELDING ENDS,ASMEB16.25
INSPECTION AND TEST,API598/API16D

Design description:
FULL PORT DESIGN
OS & Y,OUTSIDE SCREW AND YOKE
BB,BOLTED BONNET
FLEXIBLE WEDGE,FULLY GUIDED
CHOICE OF SOLID OR SPLIT WEDGE
RENEWABLE SEAT RINGS
FORGED T-HEAD STEM
RISING STEM AND NON-RISING HANDWHEEL
FLANGED OR BUTTWELDING ENDS
AVAILABLE WITH BG OPERATOR

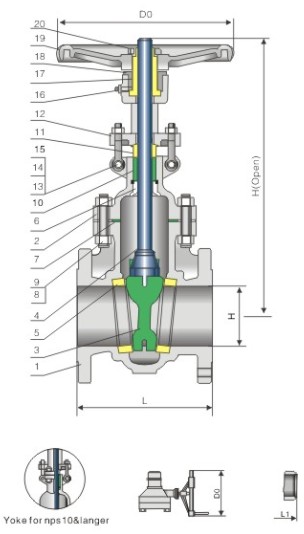

Materials of parts

No	Part Name	ASTM Material
No	Part Name	A216-WCB	A351-CF8	A351-CF8M
1	Body	A216-WCB	A351-CF8	A351-CF8M
2	Bonnet	A216-WCB	A351-CF8	A351-CF8M
3	Wedge	A216-WCB+CR13	A351-CF8	A182-CF8M
4	Stem	A182-F6a	A182-F304	A182-316
5	Seat Ring	A105-CR13	A351-CF8	A351-CF8M
6	Stem Back Seat	A276-420	A351-CF8	A351-CF8M
7	Bonnet Gasket	304+Graphite	304+Graphite	316+Graphite
8	Bonnet Stud	A193-B7	A193-B8	A193-B8M
9	Bonnet Stud Nut	A194-2H	A198-8	A198-8m
10	Packing	Graphite	Graphite	Graphite
11	Gland	A276-420	A182-F304	A182-F316
12	Gland Flange	A216-WCB	A351-CF8	A351-CF8M
13	Eyebolt Pin	A36	304SS	316SS
14	Eyebolt	A193-B7	A193-B8	A193-B8M
15	Eyebolt Nut	A194-2H	A194-8	A194-8M
16	Yokesleeve	A439-D2	A439-D2	A439-D2
17	Yokesleeve Jam Nut	A194-2H	A194-8	A194-8M
18	Handwheel	Ductile lron	Ductile lron	Ductile lron
19	Handwheel Nut	Carbon steel	Carbon steel	Carbon steel

Note:1).Ductile Ni-Resist optional
2).Wedge and seat ring may either be solid facing material or a base material equal
To or better than the body/bonnet material with facing as shown

Dimensions data

NPS	2	2月21日	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	40	42	48	in
DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	1000	1050	1200	mm
ANSI Class 150LB/JIS 10K
L	7	7.5	8	9	10.5	11.5	13	14	15	16	17	18	20	22	24	24	28	28	32	32	42	in
(RF)	178	191	203	229	267	292	330	356	381	406	432	457	508	559	610	610	711	711	813	813	1067	mm
H	15.25	17	18.88	23	30.5	37.62	45.5	53.12	59.38	67	74.5	83.5	98.25	110.5	116.5	124	129	146.5	130	136.96	161.7	in
(OPEN)	386	434	480	584	765	956	1149	1350	1508	1703	1892	2119	2500	2806	2960	3150	3280	3720	3302	3479	3962	mm
D0	8	8	10	12	12	14	16	18	20	22	24	26	29	29	32	32	38	40	40.15	40.15	40.15	in
D0	200	200	250	300	300	350	400	450	500	550	600	640	720	720	800	800	950	1000	1020	1020	1020	mm
WT	18	25	32	50	77	121	178	263	363	463	621	792	1190	1521	1838	2261	2490	3310	4650	5100	6500	RF
(kg)	15	18	26	41	69	108	156	248	330	424	587	752	1144	1570	1900	3310	2540	3380	-	-	-	BW
ANSI Class 300LB/JIS 20K
L	8.5	9.5	11.12	12	15.88	16.5	18	19.75	30	33	36	39	45	49	53	55	60	68	76.96	80	90	in
(RF)	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1727	1955	2032	2286	mm
H	16.12	17.88	20	24	31.75	59.38	47.62	55.75	62.25	67.88	77.12	86.38	102	117	122	126	130	152	146.18	154.17	177.2	in
(OPEN)	410	453	509	612	805	1000	1210	1415	1580	1725	1960	2195	2590	2975	3100	3200	3300	3860	3713	3916	4501	mm
D0	8	8	10	12	12	14	16	18	20	22	24	26	29	29	32	32	38	40	28.34	28.34	28.34	in
D0	200	200	250	300	300	350	400	450	500	550	600	640	720	720	800	800	950	1000	720	720	720	mm
WT	23	35	50	71	144	209	322	482	683	950	1145	1635	2660	3090	3310	3595	3720	3985	8100	9750	13050	RF/RTJ
(kg)	17	26	39	53	113	164	256	390	565	805	965	1410	2305	2540	2725	3055	3360	3630	-	-	-	BW
CYH/Y-16
DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	240	284	303	321	352	438	450	528	620	753	847	1039	1248	1472	1450	1887	2011	2181	2346
(OPEN)	240	284	303	321	352	438	450	528	620	753	847	1039	1248	1472	1450	1887	2011	2181	2346
D0	120	140	160	180	200	240	240	320	320	360	360	400	450	560	640	640	720	720	800
(kg)	5	6.5	9	12	26.5	29	33	45	63	108	134	192	273	379	590	850	907	958	1112
CYH/Y-25
DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	240	284	303	321	352	438	450	528	620	753	847	1039	1248	1472	1450	1887	2011	2181	2346
(OPEN)	240	284	303	321	352	438	450	528	620	753	847	1039	1248	1472	1450	1887	2011	2181	2346
D0	120	140	160	180	200	240	240	320	320	360	360	400	450	560	640	640	720	720	800
(kg)	5.5	7	11	14	30	34	36	50	69	116	141	192	207	400	631	900	1013	1166	1258
